Codian (Tandberg) - IP VCR 2200 Series Recorder

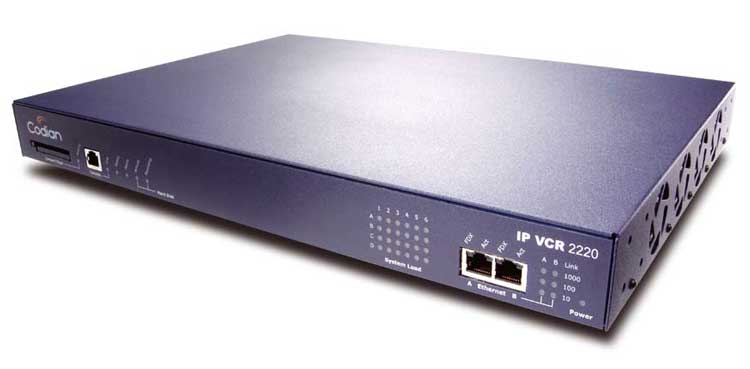

Codian IP VCR 2200 Series
See larger image

The Codian IP VCR 2200 series of IP Video Conferencing Recorders allows users to record video and slides from standard video conferencing equipment. The 2200 series also allows lossless playback of content at multiple speeds to a PC or any video conferencing endpoint. Data is transcoded and transrated to guarantee flawless transmission whether being played back, exported, or streamed.

IP VCR 2200 Series Specifications

Model 2210 2220 2240
H.323 Recording Ports 1 5 10
H.323 Playback Ports 5 10 20
Video Streaming (Unicast/Multicast) 100/Unlimited 200/Unlimited 400/Unlimited
Recorded Hours (High/Med./Low Quality) 75/150/300 150/300/600 300/600/1200
Video Firewall No Included Included

Video Standards

  • H.261, H.263, H.263+, H.263++, H.264, MPEG-1

Video Resolution

  • QCIF, QSIF, CIF, SIF, iCIF, iSIF, 288p, 384p, 400p, 448p, VGA, 4CIF, 4SIF, 480p, SVGA, 576p, XGA, 720p

Audio Standards

  • G.711, G.722, G.723.1, G.728, G.729, MPEG-4 AAC-LC, MPEG-4 AAC-LD, Polycom® Siren14™ / G.722.1 Annex C

Frame Rates

  • Up to 30 frames or 60 fields per second in all modes

Bandwidth

  • from 128kbit/s to 2 Mbit/s

Transcoding and Transrating

  • Video and audio are played back via H.323 or streamed using a bandwidth and codec that can be different from the source
  • The IP VCR will transcode and transrate as required
  • All recordings are stored in native format with no loss of quality

Recording

  • From an H.323 endpoint, MCU or Gateway
  • From two H.323 endpoints on a point to point call
  • H.323 dial in, or dial out from web server
  • Data from H.239 (dual video) capable endpoints
  • Up to 200 recordings
  • Folders for structured storage

Streaming Video

  • Pause, rewind and fast forward for recorded playback
  • Embedded via web interface or standalone via URL
  • Viewed using Windows Media Player™, RealPlayer™ or QuickTime™
  • Stream at multiple bandwidths
  • Support for 3rd party streaming servers
  • Unicast or Multicast
  • UDP, TCP or HTTP

H.323 Playback

  • To H.323 endpoint, MCU or Gateway
  • Select using E.164 address, using auto attendant or dial out from web server
  • Replay of data / slides using H.239 (dual video)
  • Choose side by side or PiP (voice activated) layout for playback of point to point recordings
  • Pause, rewind and fast forward using remote control
  • Bandwidth / codec adjusted to match endpoint and network
  • Built-in and uploadable auto attendant voice prompts

Export Recordings

  • Export in industry standard MPEG-1 to easily create CDs or DVDs

Import Video

  • Upload industry standard MPEG-1 video presentations

System Management

  • RS-232 for local control and diagnostics
  • Secure upgrades through Ethernet or CompactFlash
  • Configurable event logs and full H.323 and SIP decoding
  • Configuration Backup to network
  • SNMP

Interfaces

  • 2 x RJ45 Ethernet
  • 10/100/1000 Mbps full/half duplex: manual or autosensing
  • RJ45 serial port
  • CompactFlash socket
  • 37 status LEDs

Security Features

  • Administrator, User and Guest passwords
  • Password protected streaming and content playback
  • DTMF passwords for H.323 endpoints
  • Secure non-PC hardware and operating system
  • Video firewall option using second Ethernet port

Physical Dimensions

  • 19” rack mountable (kit supplied) or standalone
  • Height 1.73”, 44 mm (1U), Width 17.2”, 437 mm
  • Depth 12.3”, 312 mm, Weight 9 lbs, 4kg
  • Power 100-240 VAC, 50/60Hz
  • 110W max power consumption
