Codian (Tandberg) - ISDN GW 3200 Series

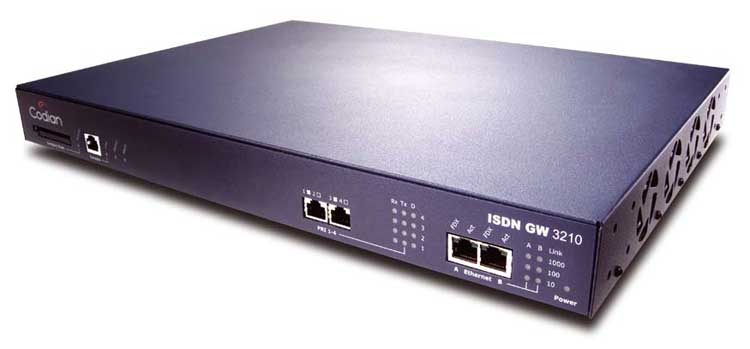

codian isdn gw 3200
See larger image

The Codian ISDN 3200 GW Series offers multipoint video conference bridging without the need of a gatekeeper. The ISDN series is also capable of receiving calls from regular phones, as well as offers the latest, state-of-the-art technology. The series has the Auto Attendant feature, which allows callers to dial with IP or ISDN through the gateway.

ISDN GW 3200 Series Specifications

Models 3210 3220 3240
T1/E1 ISDN PRI Interfaces 1 2 4
Video Calls at 384 kbps (T1/E1) 3 / 5 7 / 10 15 / 20
Video Calls at 768 kpbs (T1/E1) 1 / 2 3 / 5 7 / 10
Audio Calls (T1/E1) 23 / 30 23 / 30 23 / 30

Endpoints Supported

  • H.323 IP voice and video endpoints
  • H.320 ISDN voice and video endpoints
  • PSTN audio only calls (telephones) through ISDN
  • Video Resolution
  • QCIF, QSIF, CIF, SIF, iCIF, iSIF, 288p, 384p, 400p, 448p, VGA, 4CIF, 4SIF, 480p, SVGA, 576p, XGA, 720p

Video Standards

  • H.261, H.263, H.263+, H.263++, H.264

Audio Standards

  • G.711, G.722, G.728, Polycom® Siren14™ / G.722.1 Annex C

Frame Rates

  • Up to 30 frames per second and 60 fields per second

ISDN Bonding

  • Automatic downspeeding on loss of ISDN B channels
  • H.221 aggregation
  • BONDING (ISO 13871)

Bandwidth

  • H.320 / H.323 calls supported up to 2 Mbps
  • Total bandwidth and number of sites supported is limited only by ISDN capacity

System Management

  • Management via embedded web server
  • Secure upgrades through Ethernet or CompactFlash
  • Configuration backup to network
  • Call Detail Records downloadable as XML
  • RS-232 for local control and diagnostics

Presentation / Data Collaboration

  • Data from H.239 (dual video) capable endpoints

Embedded Web Server

  • Complete configuration, control and monitoring of the system

Interfaces

  • 1 to 4 ISDN PRI ports, 2 ports per RJ 45
  • 1 RJ45 Ethernet, 10/100/1000 Mbps full/half duplex, manual or auto sensing
  • RJ45 serial port
  • Up to 27 status LEDs
  • CompactFlash socket

Security Features

  • Administrator, User and Guest passwords
  • DTMF passwords for H.323 / H.320 endpoints
  • Secure non-PC hardware and operating system

Physical Dimensions

  • 19” rack mountable (kit supplied) or standalone
  • Height 1.73”, 44 mm (1U), Width 17.2”, 437 mm
  • Depth 12.3”, 312 mm, Weight 9 lbs, 4kg
  • Power 100-240 VAC, 50/60Hz
  • 110W max power consumption
