LifeSize Team MP™

LifeSize Team MP™ delivers true-to-life HD video communications with the immersive, rich feature set that has made LifeSize an industry leader. Like the LifeSize Team system, the LifeSize Team MP delivers unsurpassed quality, ease of use and reliability all in a sleek, elegant form factor. Additionally, the built-in MCU (Multipoint Control Unit) allows users to create conferences of up to 4 participants in CP (Continuous Presensce).

Features and Benefits:

• Same great features as LifeSize Team
• Embedded multipoint control unit with up to 4 connections
• 4 point Continuous Presence mode
• High Definition Monitor Support
• High Quality Conferencing Phone
• HD Pan Tilt Zoom Cameras
• External Audio/Video Input/Output

Product Specifications:

System Components

• H.323 Codec (includes stand)
• HD Pan-Tilt-Zoom camera
• LifeSize Phone or LifeSize MicPod
• Infrared remote control

Communications

• 128Kbps - 2.5Mbps point-to-point
• 128Kbps - 1.5Mbps multisite/call
• RJ-45 Network LAN (10/100Mbps)
• RJ-45 for LifeSize Networker ISDN Module
• RJ-45 for LifeSize Phone
• RJ-11 for analog telephone line
• 3.5 mm Microphone Input for use with LifeSize MicPod

Support for Single Display Types

• HD 720p component
• VGA monitor @ 1280x768

High Definition Camera

• LifeSize-designed High Definition pan/tilt/zoom camera (patent pending)
• Resolution: 1280 x 720, 30fps
• Wide-angle lens with 4x optical zoom and 70 degree field of view
• Auto-focus
• Automatic gain control
• 10 camera presets
• 7.5 M / 25 ft. cable, Optional 15 M / 50 ft. cable

Video Specifications / Video Resolution

• Maximum Resolutions Widescreen 16:9 Modes
• 128 Kbps (400 x 244 pixels) Widescreen FCIF
• 384 Kbps (768 x 432 pixels) Cable TV
• 512Kbps (848 x 480 pixels) DVD Resolution
• 768 Kbps (1088 x 608 pixels) 2x DVD Resolution
• 1 Mbps or higher (1280 x 720pixels) High Definition

Video Codecs

• H.263, H.263+, H.264 and H.239

Video Formats

• High Definition, 16x9 aspect ratio

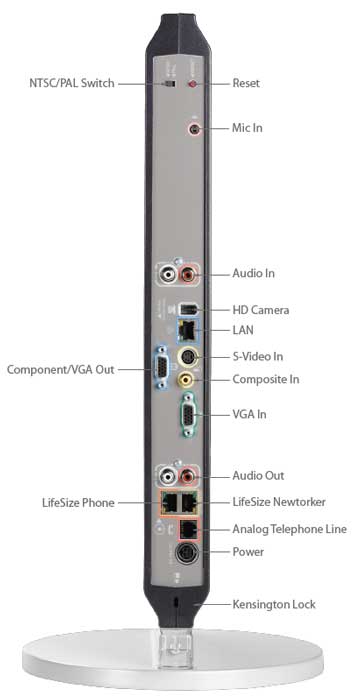

Video Inputs (4 total Inputs)

• 1 x High Definition PTZ Camera1 x S-Video1 x Composite/RCA In1 x VGA
• In (supports up to 1280x1024)

Video Outputs (1 total Output)

• 1 x Component/VGA

Audio Features

• High definition audio
• GIPS NetEQ packet loss concealment
• Full duplex for natural conversations
• Echo cancellation for echo-free calls
• Automatic gain control
• Automatic noise reduction
• Audio over analog telephone line

Audio Codecs

• G.711, G.722, G.722.1C (Polycom® Siren14™), G.729,MPEG-4 AAC-LC

Audio Inputs (2 total Inputs)

• 1 x RJ-45 for LifeSize Phone
• 1 x RCA line level input (L+R)

Audio Output (2 total Outputs)

• 1 x RJ-45 for LifeSize Phone
• 1 x Main audio output (L+R)

User Interface & Features

• High definition, context sensitive user interface
• Wireless IR remoteConnect participants from integrated speakerphone
• Call Manager Graphical User Interface
• Virtual Multiway support 13 localized languages supported
• Customizable background screen
• Selectable camera icons & live preview

Security

• Flash-based Web management tool
• Administrator and User-level passwords
• SNMP security alerts
• Ability to disable HTTP, SSH and Telnet services
• H.235 encryption support including strict compliance
• Kensington lockable

Intelligent Networking Features

• IPv4 and IPv6 support
• Auto H.323 dialing
• When used with LifeSize Networker:
• H.320 dialing
• Auto SPID detect
• Downspeeding

Directory and Address Book

• 1000 available local directory entries
• Save, Lock, Remove Redial List features
• Missed call notification
• LDAP (H.350) support
