Tandberg Director - Specifications

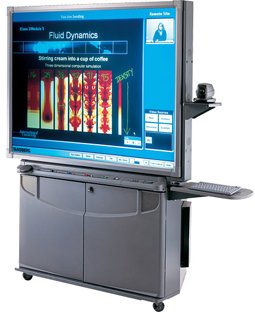

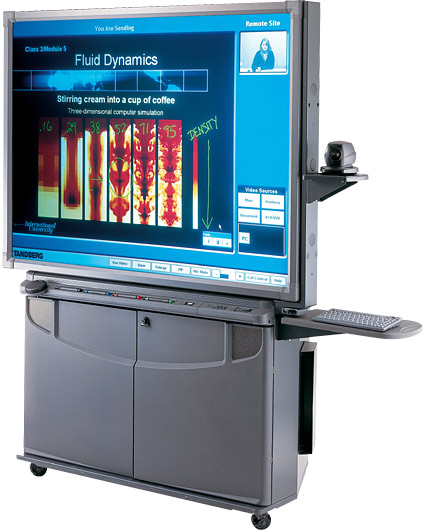

The Tandberg Director has a high resolution XGA LCD projector with a 67" touch-sensitive screen and is ideal for boardrooms, classrooms and large meeting rooms. The Director is the perfect communication tool for business, education and government.

Video Standards

• H.261, H.263, H.263+, H.263++, H.264 (Natural Video^TF*)

Bandwidth

• H.320 up to 2 Mbps
• H.323 up to 3 Mbps

Tandberg Director Video Format

• NTSC or PAL

Video Conferencing Features

• Intelligent Video Management^TF
• 8 combined presets
• XGA Output Resolution
• Optional rear monitor
• Frame Rates
• 15 frames per second @ 56 - 128 kbps
• 30 frames per second @ 168 kbps - 3 Mbps
• 60 fields per second @ 768 kbps - 3 Mbps (Natural Video^TF)

Live Video Resolutions

Native NTSC:

• 4SIF (704 x 480 pixels), Digital Clarity^TF
• Interlaced SIF^TF (352 x 480 pixels), Natural Video^TF
• SIF (352 x 240 pixels)

Native PAL:

• 4CIF (704 x 576 pixels), Digital Clarity^TF
• Interlaced CIF-^TF (352 x 576 pixels), Natural Video^TF
• CIF (352 x 288 pixels)
• QCIF (176 x 144 pixels)
• SQCIF (128 x 96 pixels) decode only

Native PC Resolutions:

• SVGA (800 x 600 pixels)
• VGA (640 x 480 pixels)
• XGA (1024 x 768 pixels)

Still Image Transfer

• CIF, 4CIF (H.261 Annex D), 4SIF, VGA, SVGA, XGA

Video Outputs (4 OUTPUTS)

• 1 x XGA Display (Multi Image)
• 1 x composite: main monitor
• 1 x composite: local display
• 1 x touch panel display (XGA)

Video Inputs (5 inputs)

• 2 x PTZ controllable room cameras
• 1 x RCA/Phono, composite: Document camera
• 1 x RCA/Phono, composite: VCR / DVD
• 1 x XGA: PC

XGA Input/XGA Output

• Input: 640 x 480 - 1024 x 768
• 56 - 85 Hz. Auto-detection
• Output: 1024 x 768, 60 Hz

Audio Standards

• G.711, G.722, G.722.1, G.728

Audio Features for the Tandberg Director

• Four separate acoustic echo cancellers
• Audio mixer
• Automatic gain control
• Automatic noise reduction
• VCR ducking

Audio Outputs (3 OUTPUTS)

• 1 x Line Level: Main Audio
• 2 x RCA/Phono, Line level: VCR out/Aux out (mixed far and near)

Audio Inputs (6 INPUTS)

• 1 x Director mic, 24V phantom powered, XLR connector
• 1 x additional Audioscience mic, 24V phantom powered, XLR connector
• 1 x additional Table Top mic, 24V phantom powered, XLR connector
• 1 x RCA/Phono, Line Level: VCR input
• 2 x RCA/Phono, Line Level: Auxiliary source inputs

Features of the Tandberg Director

MultiSite^TF Video Conferencing

• ISDN & IP Downspeeding^TF at call set-up
• Dial in/Dial out capabilities
• Continuous Presence or Voice Switched
• Chair control for host system
• 5 sites including min. 1 telephone call
• Built-in MultiSite^TF audio bridge for up to 5 sites
• DuoVideo^TF, Digital Clarity^TF, Natural Video^TF

MultiSite^TF over IP

• 4 sites @ 64 - 768 kbps + 1 telephone call via ISDN
• 3 sites @ 64 - 1 Mbps + 2 telephone calls via ISDN
• Point-to-point @ 3 Mbps + 3 telephone calls via ISDN
• MultiSite^TF over ISDN PRI/E1 (T1)
• 4 sites @ 56 - 512 (384) kbps + 1 telephone call via ISDN
• 3 sites @ 56 - 768 (512) kbps + 2 telephone calls via ISDN
• Point-to-point @ 56 - 1.5 (1) Mbps + 3 telephone calls via ISDN

MultiSite^TF over ISDN/BRI

• 4 sites @ 256 kbps or 3 sites @ 384 kbps
• 4 sites @ 56 - 192 kbps + 1 telephone call via ISDN
• 3 sites @ 56 - 256 kbps + 2 telephone calls via ISDN
• Point-to-point @ 56 - 512 kbps + 3 telephone calls via ISDN

MultiSite^TF (H.243) Cascading

• Up to 10 video sites @ 768 kbps + 4 audio sites
• Any combination of IP & ISDN connections (transcoding)
• DuoVideo^TF available on all networks
• DuoVideo^TF available in MultiSite^TF (over IP and ISDN)

Tandberg Director Network Features

• Auto H.320/H.323 Dialing
• H.331 Broadcast mode
• Downspeeding^TF
• Programmable Network Profiles
• Password Protection
• Intelligent Call Management^TF
• Maximum call length timer
• H� on ISDN-PRI facility
• NATO standard KG194 encryptor support
• Automatic SPID and Line Number Configuration
• (National ISDN, GR-2941-CORE)
• SoftMux^TF

Presentations and Collaboration (ISDN, IP AND LEASED E1/T1)

• Natural Presenter Package including:
• PC Presenter^TF
• PC SoftPresenter
• Digital Clarity^TF
• DuoVideo^TF
• T. 120 Microsoft Netmeeting support via IP (H.323) (PC not included)
• Streaming (compatible with Apple Quick Time and Real Player v8 etc)

H.323 Video Conferencing Network Features

• Differentiated Services (DiffServ)
• Resource Reservation Protocol (RSVP)
• IP precedence
• IP type of service (ToS)
• Network Address Translation (NAT) support
• IP adaptive bandwidth management (including flow control)
• Auto gatekeeper discovery
• Dynamic play out and lip-sync buffering
• Intelligent Packet Loss Recovery^TF (IPLR^TF)

Embedded Encryption

• H.320 and H.323 point-to-point and multipoint video conferencing calls
• Standards-based: H.233, H.234, H.235, DES and AES
• Automatic key generation and exchange
• Supported in DuoVideo^TF

Security Features of the Tandberg Director

• IP Password
• Access code
• Streaming password
• H.243 MCU password
• VNC password
• Possibility to disable IP services

Ethernet/Internet/Intranet/Connectivity

• TCP/IP, SNMP, DHCP, ARP, FTP, Telnet, HTTP, Internal web server
• Support for the Tandberg Management Suite Software
• Internal streaming server
• 10/100 Mbit full/half duplex (manual or auto detect selection)

Network Interfaces

• 6 x ISDN BRI (RJ-45), S-interface
• 1 x E1/T1 G.703 (RJ-45) for ISDN PRI or leased E1/T1
• 1 x E1/T1 (RJ-45) for ISDN PRI cascading
• 1 x LAN/(RJ-45) 10/100 Mbit
• 1 x X.21/V.35/RS-449 with RS-366 dialing, Leased Line or data triggered mode

Management for the Tandberg Director

Local System Management

• Optional 15" XGA touch panel or Optional Smart Board Control

Remote System Management

• Management via web browser, Telnet, FTP and SNMP, TMS
• Remote/Local diagnostics and upgrades via modem or IP

Local Site Features

• External device control protocol
• Password Protection
• XGA Presentation

Speed Dial and 300 Number Directory

Other Supported ITU Standards

• H.320, H.323, H.281, Bonding (ISO 13781), H.231, H.323, H.331

Power

• Auto-sensing power supply
• System power control management
• 100 - 250V AC, 50 - 60 Hz, 4Amps

*TF indicates Tandberg First
