Cisco C90

The Cisco C90 is a professional grade integrator codec that provides state-of-the-art interactive video conferencing. This codec defines TelePresence.

Professional Grade capabilities enable this codec to stand up to the demands of complex audio visual integration. With 14 audio inputs and 8 audio outputs, integration experts use this codec in environments where sound is critical, such as in auditoriums, conference centers and command centers. In addition to its multitude of audio inputs and outputs, the C90 also includes 13 distinct video inputs and 5 outputs [Inputs include a mix of HDMI, HD-SDI, DVI-I, DVI-D, Component and S-Video / Outputs include a mix of HDMI, DVI-I and Composite]. This codec is made for professionally demanding applications.

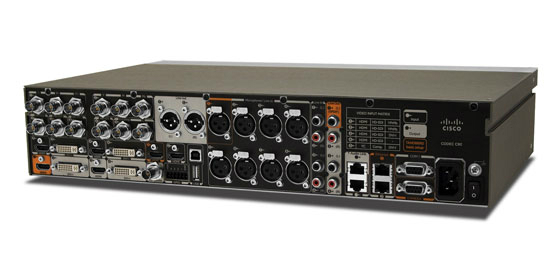

cisco c90 back thumbnail
See larger image

Key Differentiators of the C90:

  • Designed for complex integration into auditoriums or conference centers
  • 1080p30 video provides HD interactive video conferencing
  • Form factor is a 2RU design for compact rack mounting
  • Includes 14 Audio Inputs and 8 Audio Outputs
  • Includes 14 Video Inputs and 5 Video Outputs
  • Includes H.460 Firewall traversal technology
  • Optional 4 way 1080p30 Multisite capability
  • Up to 10Mbps Multisite bandwidth capacity
  • Dual Stream video H.239 capability

Please contact our sales team for information on Cisco C90 or other video conferencing products at 1.800.216.3476 or email sales@tkoworks.com


Design features
  • One of the best, most powerful codecs available with the ultimate in video and audio quality
  • 2 rack unit (2RU) high, rack-mountable, with rack mounting solution included
  • Professional grade connectors
  • Unmatched quality and flexibility
  • Standards-compliant 1080p solution-compatible with standards-based video without losing features
Application features
  • 1080p30 HD embedded MultiSite with Individual transcoding
  • Collaborate on virtually anything with 5 simultaneous video inputs
  • HD Collaboration with 1080p30 and WUXGA*
  • One button to push (OBTP) to start a meeting
  • Limitless integration possibilities
  • Ideal for immersive telepresence and collaboration studios, boardrooms, auditoriums, education and telemedicine applications
Performance features
  • Optimal definition up to 1080p60
  • H.323/SIP up to 6 Mbps point-to-point; up to 10Mbps total MultiSite bandwidth
  • Connect up to 12 HD sources and eight microphones directly into the interface
  • Full duplex audio with high-quality stereo sound
  • Full application programming interfaces (APIs)
  • Ability to take advantage of Cisco® TelePresence Total Solution Management, transcoded HD MultiSite, recording and streaming, Multiway, and firewall traversal
  • Cisco TelePresence ClearPath packet loss protection technology for optimal experience
  • Cisco Unified Communications Manager native support (requires Cisco Unified Communications Manager Version 8.6 or higher)
Unit delivered complete with:
  • Videoconferencing codec, wireless remote control, rackmounting rails, LAN cable, and power cable
Bandwidth
  • H.323/SIP up to 6 Mbps point-to-point
  • Up to 10 Mbps total MultiSite bandwidth
Firewall traversal
  • Cisco TelePresence Expressway technology
  • H.460.18 and H.460.19 Firewall Traversal
Video standards
  • H.261, H.263, H.263+, and H.264
Video features
  • Native 16:9 Widescreen
  • Advanced screen layouts
  • Intelligent video management
  • Local auto layout
  • Nine embedded individual video compositors - one for every output and one for every encoder
Video inputs (13 inputs)
    Four HDMI Inputs: Supported Formats:
  • 1920 x 1080@60 and 59.94 Hz (1080p60)
  • 1920 x 1080@50 Hz (1080p50)
  • 1920 x 1080@30, 29.97 Hz (1080p30)
  • 1920 x 1080@25 Hz (1080p25)
  • 1920 x 1080@24 and 23.97 Hz (1080p24)
  • 1280 x 720@60 and 59.94 Hz (720p60)
  • 1280 x 720@50 Hz (720p50)
  • 720 x 480@60 and 59.94 Hz (480p60)
  • 640 x 480@60 Hz (480p60)
  • 1600 x 1200@50 and 60 Hz (UXGA)
  • 1280 x 1024@60 and 75 Hz (SXGA)
  • 1024 x 768@60, 70, 75 and 85 Hz (XGA)
  • 800 x 600@56, 60, 72, 75 and 85 Hz (SVGA)
  • 1920 x 1200@50 and 60 Hz (WUXGA)
  • 1680 x 1050@60 Hz (WSXGA+)
  • 1440 X 900@60 Hz (WXGA+)
  • 1280 x 768@60 Hz (WXGA)
    • Four HD-SDI Inputs: Supported Formats:
  • 1920 x 1080@30 Hz (1080p30)
  • 1920 x 1080@25 Hz (1080p25)
  • 1280 x 720@60 Hz (720p60)
  • 1280 x 720@50 Hz (720p50)
  • 1280 x 720@30 Hz (720p30)
  • 1280 x 720@25 Hz (720p25)
    • Two DVI-I Inputs: Supported Formats:
    Analog (VGA):
  • 1920 x 1080@60 Hz (1080p)
  • 1280 x 720@60 Hz (720p)
  • 1600 x 1200@60 Hz (UXGA)
  • 1280 x 1024@60 and 75 Hz (SXGA)
  • 1280 x 960@60 Hz
  • 1024 x 768@60, 70, 75 and 85 Hz (XGA)
  • 1920 x 1200@50 Hz (WUXGA)
  • 1680 x 1050@60 Hz (WSXGA+)
  • 1440 x 900@60 Hz (WXGA+)
  • 1280 x 800@60 Hz (WXGA)
  • 1280 x 768@60 Hz (WXGA)
    • Analog (YPbPr):
  • 1920 x 1080@60 Hz (1080p60)
  • 1920 x 1080@50 Hz (1080p50)
  • 1920 x 1080@30 Hz (1080p30)
  • 1920 x 1080@25 Hz (1080p25)
  • 1280 x 720@60 Hz (720p60)
  • 1280 x 720@50 Hz (720p50)
  • 1280 x 720@30 Hz (720p30)
  • 720 x 576@50 Hz (576p50)
  • 720 x 480@60 Hz (w480p60)
    • Digital (DVI-D):
  • Same as HDMI, reference above
    • TwoYPBPR Inputs (BNC Connectors), Supported Formats:
  • Same as DVI-I, Analog (YPbPr), ref. above
    • OneS-VIDEO/Composite Input (BNC Connectors):
  • PAL/NTSC
  • Extended Display Identification Data (EDID)
Video outputs (five outputs)
    Two HDMI Outputs, Two DVI-I Outputs: Supported Formats:
  • 1920 x 1080@60 Hz (1080p60)
  • 1920 x 1080@50 Hz (1080p50)
  • 1280 x 720@60 Hz (720p60)
  • 1280 x 720@50 Hz (720p50)
  • 1600 x 1200@60 Hz (UXGA)
  • 1280 x 1024@60 Hz (SXGA)
  • 1024 x 768@60 Hz (XGA)
  • 800 x 600@60 Hz (SVGA)
  • 640 x 480@60 Hz (VGA)
  • 1920 x 1200@60Hz (WUXGA)
  • 1360 x 768@60 Hz
  • 1366 x 768@60 Hz
  • 1280 x 768@60 Hz (WXGA)
  • PAL/NTSC
  • VESA Monitor Power Management
  • Extended Display Identification Data (EDID)
    • One Composite Output (BNC Connector):
    Supported Formats:
  • PAL/NTSC
  • VESA Monitor Power Management
Live video resolutions (encode and decode)
  • 176 x 144@30 frames per second (fps) (QCIF)
  • 352 x 288@30 fps (CIF)
  • 512 x 288@30 fps (w288p)
  • 576 x 448@30 fps (448p)
  • 768 x 448@30 fps (w448p)
  • 704 x 576@30 fps (4CIF)
  • 1024 x 576@30 fps (w576p)
  • 1280 x 720@30 fps (720p30)
  • 1920 x 1080@30 fps (1080p30)**
  • 640 x 480@30 fps (VGA)
  • 800 x 600@30 fps (SVGA)
  • 1024 x 768@30 fps (XGA)
  • 1280 x 1024@30 fps (SXGA)
  • 1280 x 768@30 fps (WXGA)
  • 1440 x 900@30 fps (WXGA+)
  • 1680 x 1050@30 fps (WSXGA+)
  • 1600 x 1200@30 fps (UXGA)**
  • 1920 x 1200@25 fps (WUXGA)**
  • 512 x 288@60 fps (w288p60)
  • 768 x 448@60 fps (w448p60)
  • 1024 x 576@60 fps (w576p60)
  • 1280 x 720@60 fps (720p60)**
  • 720p30 from 768kbps
  • 720p60 from 1152kbps
  • 1080p30 from 1472kpbs
Audio standards
  • G.711, G.722, G.722.1, and 64 kbps & 128 kbps MPEG4 AAC-LD, AAC-LD Stereo
Audio features
  • CD-Quality 20KHz Mono and Stereo
  • Eight separate acoustic echo cancellers
  • Eight port audio mixer
  • Automatic Gain Control (AGC)
  • Automatic noise reduction
  • Active lip synchronization
Audio inputs (14 inputs)
  • Eight microphones, 48V phantom powered, XLR connector each with separate echo cancellers and noise reduction, and all microphones can be set for balanced line level
  • Two RCA/Phono, Line Level: Stereo PC input
  • Two RCA/Phono, Line Level: Stereo auxiliary/DVD input
  • Two HDMI, digital: Stereo PC/DVD inputs
Audio outputs (eight outputs)
  • Two XLR, balanced line level, and stereo main audio
  • Two RCA/Phono, line level, and stereo main audio, configurable to S/PDIF
  • Two RCA/Phono, line level, and stereo to recording device
  • One HDMI, digital, and stereo main audio
  • One HDMI, digital, and stereo to recording device
Dual stream
  • H.239 (H.323) dual stream
  • BFCP (SIP) dual stream
  • Available in MultiSite from any site
  • Support for resolutions up to 1080p30/WUXGA, independent of main stream resolution
MultiPoint support
  • Four-way embedded SIP/H.323 MultiPoint, reference MultiSite
  • Cisco TelePresence Multiway support (requires Cisco TelePresence Video Communication Server [Cisco VCS] and TelePresence MCU)
  • Ability to natively join multipoint conferences hosted on Cisco TelePresence Multipoint Switch (CTMS)
MultiSite features (embedded MultiPoint)
  • Four way 1080p30 High Definition SIP/H.323 MultiSite
  • Full individual audio and video transcoding
  • Individual layouts in MultiSite CP (takes out self view)
  • H.323/SIP/VoIP in the same conference
  • Support for Presentation (H.239/BFCP) from any participant at resolutions up to 1080p30/WUXGA
  • Best Impression (Automatic CP Layouts)
  • H.264, Encryption, Dual Stream from any site
  • IP Downspeeding
  • Dial in and dial out
  • Additional telephone call (no license required)
  • Conference rates up to 10 Mbps
Protocols
  • H.323
  • SIP
Embedded encryption
  • H.323/SIP point-to-point and multipoint calls
  • Standards-based: H.235-v3 and Advanced Encryption Standard (AES)
  • Automatic key generation and exchange
  • Supported in Dual Stream & and MultiSite
IP network features
  • DNS lookup for service configuration
  • Differentiated Services quality of service (QoS)
  • IP adaptive bandwidth management (including flow control)
  • Auto gatekeeper discovery
  • Dynamic playout and lip-sync buffering
  • H.245 DTMF tones in H.323
  • Date and Time support via NTP
  • Packet Loss based downspeeding
  • URI Dialing
  • TCP/IP
  • DHCP
  • 802.1x Network Authentication
  • 802.1Q Virtual LAN
  • 802.1p (QoS and class of service [COS])
  • ClearPath
Cisco Unified Communications Manager (requires Cisco Unified Communications Manager Version 8.6 or later)
  • Native registration with Cisco Unified Communications Manager
  • Basic Cisco Unified Communication Manager Provisioning
  • Firmware upgrade from Cisco Unified Communications Manager
  • Cisco Discovery Protocol and DHCP option 150 support
  • Basic telephony features such as hold/resume/transfer and Corporate Directory lookup
IPv6 network support
  • Single call stack support for both H323 and SIP
  • Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, Secure HTTP (HTTPS), DNS, and Differentiated Services (DiffServ)
  • Support for both static and autoconfiguration (stateless address auto configuration)
Security features
  • Management through HTTPS and SSH
  • IP administration password
  • Menu administration password
  • Disable IP services
  • Network settings protection
Network interfaces
  • Two separate LAN/Ethernet (RJ-45) 10/100/1000 Mbit
Other interfaces
  • USB host for future usage
  • USB device for future usage
  • GPIO*
Cisco TelePresence PrecisionHD Camera (1080p)
  • 1/3" inch CMOS
  • 12x zoom
  • +15�°/-25�° tilt and +/- 90�° pan
  • 43.5�° vertical field of view
  • 72�° horizontal field of view
  • Focus distance 0.3m-infinity
  • 1920 x 1080 pixels progressive @ 60fps
  • Other formats supported (configurable through Dip-switch):
    • 1920x1080@60fps (HDMI only)
    • 1920x1080@50fps (HDMI only)
    • 1920x1080@30fps
    • 1920x1080@25fps
    • 1280x720@60fps
    • 1280x720@50fps
    • 1280x720@30fps
    • 1280x720@25fps
  • Automatic or manual focus, brightness, and whitebalance
  • Far-end camera control
  • Daisy-chain support (Visca protocol camera)
  • Dual HDMI and HD-SDI outputs
  • Upside-down mounting with automatic flipping of picture
System management
  • Support for the Cisco TelePresence Management Suite
  • Total management via embedded SNMP, Telnet, SSH, XML, and SOAP
  • Remote software upload: via web server, SCP, HTTP, and HTTPS
  • One RS-232 for local control and diagnostics
  • Remote control and on-screen menu system
Directory services
  • Support for local directories (My Contacts)
  • Corporate Directory
  • Unlimited entries using server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite)
  • Unlimited number for Corporate directory (through Cisco TelePresence Management Suite)
  • 200 number local directory
  • Received calls
  • Placed calls
  • Missed calls with date and time
Power
  • Auto-sensing power supply
  • 100-240 VAC, 50/60 Hz
  • 175 watts maximum for codec and main camera
Operating temperature and humidity
  • 0 to 35�° (32 to 95�° F) ambient temperature
  • 10to 90% relative humidity (RH)
Storage and transport temperature
  • -20 to 60�° C -4to 140�° F at RH 10-90% (non-condensing )
Dimensions
  • Length: 17.36 in. (44.1 cm)
  • Height: 3.67 in. (9.3 cm)
  • Depth: 11.8 in. (30 cm)
  • Weight: 11.22 lbs (5.1 kg)
*Requires option
How do I connect my legacy equipment to my network for secure video teleconferencing?
a. Update current firmware.
b. Connect comm line to firewall LAN.
c. Make sure data is going through secure port.

How do I host and conduct a video conference event with legacy equipment?
a. Firmware updates on legacy device.
b. Software compatibility for video streaming software.
c. Security connection to enterprise network
d. Vendor with end to end control

Are you interested in buying state of the art equipment?
a. Contact our sales department.

More About TKO Products

Connect with TKO

background
