ViewStation SP 128/384 - Specifications

Standards Supported

• ITU-T H.320 (px64); H.323

Video Standards

• H.261, Annex D
• H.263+, Annexes: L,F,T,I

Other ITU Supported Standards

• H.221 Communications
• BONDING, Mode 1
• H.281 Far end camera control

Graphics Resolution

• Slide Transmission Format - H.261 Mode: 4 x FCIF
• Graphic Image Capture - JPEG via web browser

Video Resolution

• FCIF; QCIF

View Station SP Frame Rate

• H.320 Calls: 15 fps @ 56-320 Kbps
• H.320 Calls: 30 fps @ 336-384 Kbps (SP 384 only)
• H.323 Calls: 15 fps @ 56-320 Kbps
• H.323 Calls: 30 fps @ 336-768 Kbps

Transmission Speed

• - ViewStation SP 128
  H.320 - 56-128 Kbps
  H.323 - 56-768 Kbps
• - ViewStation SP 384
  H.320 - 56-384 Kbps
  H.323 - 56-768 Kbps

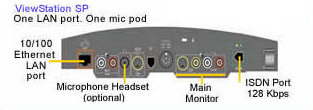

Video Outputs (NTSC or PAL)

• Main Monitor - S-Video or composite
• Main Monitor Auto-PIP System - Auto-on, auto-swap, auto-off

Video Inputs (NTSC or PAL)

• Document Camera or VCR (w/external connector) - S-Video or composite

Integrated Main Camera-Sony EVI-10

• Image Sensor - 1/3 in IT CCD

Lens

• 65� field of view
• 12 x Zoom; f=4.2 to 42 mm
• F=1.85 to 2.9 mm
• Auto focus

White Balance - Automatic

Camera Presets

• 10 presets local camera
• 10 preset positions far-end camera

Tracking Technique

• Voice tracking or track to presets

Full-Duplex Digital Audio

• Instant adaptation echo cancellation
• Automatic gain control
• Automatic noise suppression

Audio Standards

• G.728, G.722, G.711

Audio Inputs/Outputs

• Digital Microphone
• Headset microphone (option) w/ headset connector
• Headset Speaker
• Main monitor left and right audio-out
• Line Level input - RCA

Digital Microphone Pod

• Coverage 360�
• Microphones have 3 hypercardioid elements
• Omni-directional coverage

Remote Management

• Extensive diagnostics and software upgrades via PC, LAN or video call
• Supports Polycom Global Management System,™ Global Address Book and SNMP
• Supports Polycom OneDial™

Ethernet/Internet/Intranet Connectivity

• Supports TCP/IP, DNS, WINS, SNMP, DHCP, ARP, WWW, ftp, Telnet
• 10/100 Mbps Ethernet Port
• T.120 Interface with Microsoft® NetMeeting®

Network Interface - ISDN Protocols

• NI-1, 5ESS, DMS100, ETSI
• Auto network setup
• Auto-SPID and switch detection

ViewStation SP Collaboration Solutions

• PC Presents for Microsoft® PowerPoint
• Polycom SNAP for high resolution graphics capture
• Visual Concert™ DC
• Visual Concert PC Basic

Electrical

• Auto-sense power supply
• Operating voltage/power
• 90-260 VAC, 47-63 Hz/40 watts

Dimensions and Weight

• Dimensions - 33cm x 20cm x 15cm
• Weight - 2.7kg (6lbs)

Languages Supported

• English, French, German, Spanish, Italian, Portuguese, Norwegian, Chinese and Japanese

Warranty

• One year parts and labor
