Tandberg 2500 - Specifications

The Tandberg 2500 includes 1 or 2 monitors, W.A.V.E. II camera, microphone, integrated cabling, roll about stand and wireless remote control. The 2500 is designed for medium to large meeting rooms.

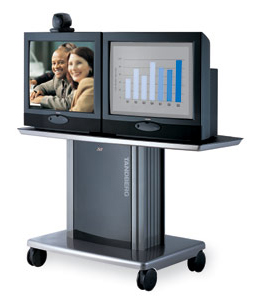

tandberg 2500
See larger image

Bandwidth

  • H.320 up to 384 kbps
  • H.323 up to 768 kbps

Monitor

  • 27" monitor NTSC or 29" monitor PAL
  • Other monitors supported.

Tandberg 2500 Video Features

  • Picture in Picture (PIP)
  • Intelligent Video ManagementTF

Video Standards

  • H.261, H.263, H.263+, H.263++, H.264 (Natural VideoTF*)

Video Outputs (5 outputs)

  • 1 x MiniDin, S-video: main monitor
  • 1 x MiniDin, S-video: dual monitor
  • 1 x RCA/phono, composite: main monitor or VCR
  • 1 x RCA/phono, composite: dual monitor or VCR
  • 1 x XGA: main monitor, dual monitor or XGA loop

Video Inputs (5 inputs)

  • 1 x MiniDin, S-video: main camera
  • 1 x MiniDin, S-video: auxiliary/document camera
  • 1 x RCA/Phono, composite: document camera/aux
  • 1 x RCA/Phono, composite: VCR
  • 1 x XGA: PC

XGA Input/XGA Output

  • Input: 640 x 480 - 1024 x 768, 56 - 85 Hz. auto-detection
  • Output: 640 x 480 - 1024 x 768, 60 Hz

Video Format

  • NTSC, PAL, VGA, SVGA or XGA

Live Video Resolution for the Tandberg 2500

Native NTSC

  • 4SIF (704 x 480 pixels), Digital ClarityTF
  • Interlaced SIFTF (352 x 480 pixels), Natural VideoTF
  • SIF (352 x 240 pixels)

Native PAL

  • 4CIF (704 x 576 pixels), Digital ClarityTF
  • Interlaced CIFTF (352 x 576 pixels), Natural VideoTF
  • CIF (352 x 288 pixels)
  • QCIF (176 x 144 pixels)
  • SQCIF (128 x 96 pixels) decode only

Native PC Resolutions:

  • XGA (1024 x 768 pixels)
  • SVGA (800 x 600 pixels)
  • VGA (640 x 480 pixels)

Still Image Transfer

  • CIF, SIF, 4CIF (H.261 Annex D), 4SIF, VGA, SVGA, XGA

You may also be interested in learning more about:

Audio Standards

  • G.711, G.722, G.722.1, G.728

Audio Features

  • Telephone add-on via MultiSiteTF
  • Audio level meters
  • Automatic noise reduction
  • Two separate acoustic echo cancellers
  • Audio mixer
  • Automatic gain control
  • VCR ducking

Audio Outputs (3 outputs)

  • 1 x RCA/Phono, Line Level: main audio
  • 1 x RCA/Phono, Line Level: auxiliary
  • 1 x RCA/Phono, Line Level: VCR

Audio Inputs (4 inputs)

  • 2 x microphone, 24V phantom powered, XLR connector
  • 1 x RCA/Phono, Line Level: auxiliary
  • 1 x RCA/Phono, Line Level: VCR

Frame Rates - Point-to-Point and Multisite Video Conferencing

  • 15 frames per second @ 56 - 128 kbps
  • 30 frames per second @ 168 - 768 kbps
  • Point-to-point only: 60 fields per second @ 336 kbps - 768 kbps (Natural VideoTF)

Multisite Video Conferencing Features

  • Support for ISDN or IP telephones
  • ISDN & IP DownspeedingTF at call set-up
  • Dial in/Dial out capabilities
  • Continuous Presence or Voice Switched
  • Chair control for host system
  • 5 sites including min. 1 telephone call
  • Built-in MultiSiteTF
  • IP audio bridge for up to 4 sites
  • DuoVideoTF, Digital ClarityTF

MultiSiteTF and ( H.243) Cascading over ISDN and IP

  • Up to 10 video and 4 audio sites
  • Any combination of IP & ISDN connections (transcoding)

MultiSiteTF over IP

  • 4 sites @ 64-256 kbps + 1 telephone call via ISDN
  • 3 sites @ 64-384 kbps + 2 telephone calls via ISDN
  • Point-to-point @ 768 kbps + 3 telephone calls via ISDN

MultiSiteTF over ISDN/3BRI

  • 4 sites @ 128 kbps or 3 sites @ 192 kbps
  • 3 sites @ 128 kbps + 2 telephone calls via ISDN
  • Point-to-point @ 192 kbps + 3 telephone calls via ISDN

DuoVideoTF

  • Available on all networks
  • Available from host system in MultiSiteTF (over IP & ISDN)

Network Features

  • Auto H.320/H.323 dialing
  • DownspeedingTF
  • Programmable network profiles
  • Intelligent Call ManagementTF
  • Maximum call length timer
  • Automatic SPID and line number configuration (National ISDN, GR-2941-CORE)
  • SoftMuxTF
  • NATO standard KG194/KIV-7 encryptor support
  • H.331 Broadcast Mode

Embedded Encryption

  • H.320 and H.323 point-to-point and multipoint video conferencing calls
  • Standards-based: H.233, H.234, H.235, DES and AES
  • Automatic key generation and exchange
  • Supported in DuoVideoTF

Security Features for the Tandberg 2500

  • IP Password
  • Menu Password
  • Access code
  • Streaming password
  • H.243 MCU password
  • VNC password
  • SNMP security alert
  • Encrypted HTTP password
  • Possibility to disable IP services

H.323 Video Conferencing Network Features

  • Differentiated Services (DiffServ)
  • Resource Reservation Protocol (RSVP)
  • IP precedence
  • IP type of service (ToS)
  • Network Address Translation (NAT) Support
  • IP adaptive bandwidth management (including flow control)
  • Auto gatekeeper discovery
  • Dynamic playout and lipsync buffering
  • Intelligent Packet Loss RecoveryTF (IPLRTF)

Network Interfaces

  • 3 x ISDN BRI (RJ-45), S-interface
  • 1 x LAN/Ethernet (RJ-45) 10/100 Mbit (LAN/DSL/cable modem)
  • 1 x X.21/V.35/RS-449 with RS-366 dialing, leased line or data triggered mode

Ethernet/Internet/Intranet/Connectivity

  • TCP/IP, DHCP, ARP, FTP, Telnet, HTTP
  • SNMP Enterprise Management
  • Internal web server
  • Internal streaming server (streams local and far-end site)
  • 10/100 Mbit full/half duplex (manual or auto detect selection)

Other Major ITU Standards Supported

  • H.320, H.323, H.235, H.233, H.234, H.281, BONDING (ISO 13871), H.231, H.243, H.331

W.A.V.E. (Wide Angle View) II Camera

  • 10 x zoom
  • 1/4" CCD
  • +15� / -20� tilt
  • + / -95� pan
  • 61� vertical field of view
  • 96� total vertical field of view
  • 77� horizontal field of view
  • 267� total horizontal field of view
  • 460 (PAL)/470 (NTSC) TV lines
  • Min. illumination 2 Lux (F1.8)
  • Auto or manual focus/brightness/white balance
  • Far end camera control
  • 15 near and far-end camera pre-sets
  • Voice-activated camera positioning
  • Daisy chain support for up to 4 cameras
  • VISCA camera support

Closed Captioning/Text Chat

  • T.140 standards-based

Video Conferencing Presentations and Collaboration

  • Natural Presenter Package including:
  • PC PresenterTF
  • PC SoftPresenterTF
  • Digital ClarityTF
  • DuoVideoTF
  • T. 120 Microsoft NetMeeting support via RS-232 (9-pin D-sub)
  • Streaming (compatible with Cisco IP/TV, Apple QuickTime, RealPlayer v8 etc.)

Tandberg 2500 System Management

  • Support for the Tandberg Management Suite Software
  • Total management via embedded web server, SNMP, Telnet and FTP
  • Remote software upload: during a call over all networks via webserver or via FTP server
  • 1 x RS-232 used for main camera control
  • 1 x RS-232 for local software upgrades, local control, diagnostics
  • Remote control and on-screen menu system

Directory Services

  • 400 number global directory
  • 100 number local directory
  • 16 dedicated MultiSiteTF video conferencing entries

Customized Boot Up Logo (JPEG)

Power

  • Auto-sensing power supply
  • 100 - 250V AC, 50 - 60 Hz
  • 65 watts max. for codec and main camera

10 Languages (selectable menu)

  • Chinese, English, French, German, Italian, Japanese, Norwegian, Portuguese, Spanish and Swedish

Tandberg 2500 Physical Dimensions

  • Depth: 26.2"/66.5 cm
  • Width: 37.9"/96.3 cm

*TF indicates Tandberg First
