Tandberg EDGE 75/85/95 MXP Series - Specifications

Tandberg’s Edge MXP series combines the latest, High Definition technology with the ease of installation and use that has made Tandberg an industry leader in the video conferencing market. The Edge MXP series supports H.239 and DuoVideo presentations so that you can effectively communicate your message over distances while in the comfort of your local meeting room. CD quality audio makes it possible to understand all participants clearly and easily while ISDN compatibility makes the system compatible with legacy endpoints. With a PC card, you can connect to your local wireless LAN. Tandberg’s Edge 75/85/95 MXP is a solid choice for today’s discriminating HD video conferencing users.

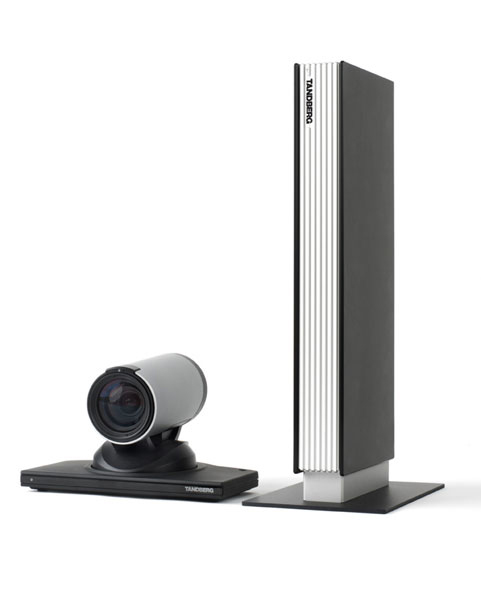

tandberg edge front thumbnail
See larger image

What’s in the Box

  • Wireless remote control, TANDBERG PrecisionHD Camera, microphone and cables

Bandwidth

  • 95 MXP: H.320 - 512 kbps, H.323/SIP - 2 Mbps
  • 85 MXP: H.320 - 384 kbps, H.323/SIP - 1.1 Mbps
  • 75 MXP: H.320 - 128 kbps, H.323/SIP - 768 kbps

Video Standards

  • H.261, H.263, H.263+, H.263++, H.264

Firewall Traversal

  • TANDBERG Expressway Technology
  • Auto NAT
  • H.460.18, H.460.19 Firewall Traversal

Video

tandberg edge
  • Native 16:9 Widescreen
  • Advanced Screen Layouts
  • Picture in Picture (PIP)
  • Picture outside Picture & Large POP
  • Side by Side
  • PC Zoom
  • Intelligent Video Management
  • Simultaneous videoconference & local PC mode
  • Local Auto Layout

Video Inputs – 5 Total

  • 1 x 9 PinDSUB: Main PrecisionHD Camera
  • 1 x DVI: PC
  • 1 x MiniDin, S-video: auxiliar y/document camera
  • 1 x RCA/Phono, composite: VCR
  • 1 x RCA/Phono, composite: document camera/aux

Video Input Resolutions

  • 800 x 600 (@ 60, 72, 75, 85 Hz), 1024 x 768 (@ 60, 70, 75 Hz),
  • 1280 x 720 (HD720P) (@ 50, 60 Hz), 1280 x 1024 @ 60 Hz

Video Outputs – 4 Total

  • 1 x MiniDin, S-video: main monitor
  • 1 x RCA/Phono, composite: main monitor or VCR
  • 1 x RCA/Phono, composite: dual monitor or VCR
  • 1xDVI-1/XGA: main or second monitor

XGA Output

  • 800 x 600 @ 75 Hz, 1024 x 768 @ 60 Hz, 1280 x 768
  • (WXGA) @ 60 Hz, 1280 x 720 (HD720p) @ 60 Hz
  • VESA Monitor Power Management

Video Formats

  • NTSC, PAL, VGA, SVGA, XGA, W-XGA, SXGA, High Definition 720p

Audio Standards

  • G.711, G.722, G.722.1, G.728, 64 bit & 128 bit MPEG4, AAC-LD
tandberg edge

Audio

  • CD-Quality 20KHz Mono and Stereo
  • Telephone add-on via MultiSite
  • Two separate acoustic echo cancellers
  • Audio mixer
  • Automatic Gain Control (AGC)
  • Automatic Noise Reduction
  • Audio level meters
  • Active lip synchronization

Audio Inputs (4 Total)

  • 2 x microphone, 24V phantom powered, XLR connector
  • 1 x RCA/Phono, Line Level: auxiliar y (or VCR Stereo L)
  • 1 x RCA/Phono, Line Level: VCR/DVD (Stereo R)

Audio Outputs (2 Total)

  • 1 x RCA/Phono, S/PDIF (mono/stereo) or Analog
  • Line Level: main audio or Analog Stereo L
  • 1 x RCA/Phono, Line Level: VCR or Analog Stereo R

Dual Stream

  • DuoVideo & H.239 dual stream
  • Available on H.323 & H.320
  • Available in MultiSite from any site (95 & 85 MXP)

Network

  • Auto H.320/H.323 dialing
  • SIP Support
  • Automatic Downspeeding
  • Programmable network profiles
  • Intelligent Call Management
  • Maximum call length timer
  • Automatic SPID and line number configuration

Multipoint (95 & 85 MXP)

  • H.323/H.320/SIP/Telephony/VoIP in the same meeting
  • Voice Switched Continuous Presence
  • H.264
  • ISDN & IP Downspeeding
  • MultiSite (H.243) Cascading on H.320 & H.323/li>
  • Chair control for host system
  • Conference rates up to 2.3 Mbps with optional bandwidth
  • 1.5 Mbps is standard conference rate
  • Up to 4 video and 3 audio sites
  • 4 sites @ 768 kbps (+telephone calls)
  • Mix ISDN-BRI and IP up to maximum conference rate

Encryption

  • H.320 and H.323 point-to-point and multipoint calls
  • Standards-based: H.233, H.234, H.235 v2&v3, DES and AES
  • NIST-validated AES
  • NIST-validated DES

IP Network

tandberg edge
  • IEEE 802.1x/EAP Network Authentication
  • H.235 Gatekeeper Authentication
  • DNS lookup for ser vice configuration
  • Differentiated Services (DiffServ)
  • Resource Reservation Protocol (RSVP)
  • IP adaptive bandwidth management (including flow control)
  • Auto gatekeeper discovery
  • Intelligent Packet Loss Recovery (IPLR)
  • H.245 DTMF tones in H.323
  • Cisco CallManager integration using ECS
  • IPv6 support

Security

  • HTTPS and SSH
  • IP Administration Password
  • Menu Administration Password
  • Dialing Access code
  • Streaming password
  • H.243 MCU Password
  • VNC password
  • SNMP security alerts
  • Disable IP services

Network Interfaces

  • 4 x ISDN BRI (RJ-45), S-inter face
  • 1 x LAN/Ethernet (RJ-45) 10/100 Mbit (LAN/DSL/cable modem)
  • 1 x PC card slot (PCMCIA) for wireless LAN
  • 1 x USB for future usage

Wireless LAN

  • Compliant with IEEE 802.11b, up to 11Mbit
  • Support for 64/128 bit encryption (WEP)
  • Infrastructure or ad-hoc mode

You may also be interested in learning more about:

Ethernet, Intranet, and Internet Connectivity

  • TCP/IP, DHCP, ARP, FTP, Telnet, HTTP, HTTPS, SOAP and XML, MD-5
  • Challenge
  • SNMP Enterprise Management
  • Internal web server
  • Internal streaming server

PrecisionHD Camera

  • 7x zoom Pan-Tilt-Zoom Camera
  • Wide angle field of view
  • 1280 x 720 pixels progressive @ 30fps

Presentations

  • Natural Presenter Package including:
  • PC Presenter (DVI-I, SXGA In)
  • Apple QuickTime®, RealPlayer® v8 etc.

Management

  • Support for the Tandberg Management Suite (TMS)
  • Total management via embedded web server
  • SNMP, Telnet, SSH, FTP and SOAP
  • Remote software upload

Directory Services

  • Local Contacts Directory
  • LDAP and H.350
  • Corporate directory (through TMS)
  • 400 number global directory
  • 200 number local directory
  • 16 dedicated MultiSite entries

16 Selectable Menu Languages

  • Arabic, Simplified Chinese, Traditional Chinese, English, French,
  • German, Italian, Japanese, Korean, Norwegian, Portuguese, Russian,
  • Spanish, Suomi, Swedish and Thai
  • Chinese, Korean and Japanese Input Method Editor
  • Import Custom Language through TMS

Dimensions

  • Height: 16.9"/42.9cm
  • Width (including footstand): 5.7"/14.5cm
  • Depth (including footstand): 9.0"/22.8cm
  • Weight: 7.7 lbs/3.5 kg
