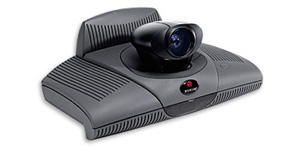

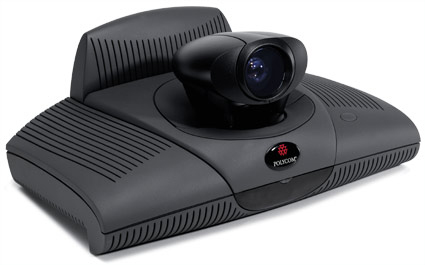

ViewStation MP - Specifications

Standards Supported

• ITU-T H.320 (px64); H.323

Video

• H.261, Annex D
• H.263+, Annex: L,F,T,I,J,u (proprietary)

Audio

• G.728, G.722, G.711

Communications

• H.221

ViewStation MP Display

• Video Resolution - QCIF and FCIF

Graphics Resolution

• Slide transmission format - H.261 Mode: 4 x FCIF
• Graphic Image Capture - JPEG via web browser

ViewStation MP Frame Rate

• H.320 Calls: 15fps @ 56-320 Kbps
• H.320 Calls: 30fps @ 336-512 Kbps
• H.323 Calls: 15 fps @ 64-320 Kbps
• H.323 Calls: 30 fps @ 336-768 Kbps

Multi-Point Video Conference Calling over ISDN

• Local plus three sites @ 128 Kbps
• Local plus two sites @ 256 Kbps

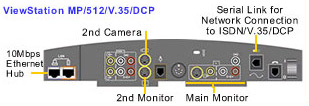

Video Inputs (NTSC or PAL)

• Document Camera - S-Video
• VCR In (for playback) - Composite

Video Outputs (NTSC or PAL)

• Main Monitor - S-Video or composite
• 2nd Monitor - S-Video
• VCR Out (recording) - Composite

Main Monitor Auto-PIP System

• Auto-on, auto-swap, auto-off

Integrated Main Camera - Sony EVI-10

• Image Sensor - 1/3 in IT CCD

Lens

• 65�field of view
• 12 x Zoom; f=4.2 to 42 mm
• F=1.85 to 2.9 mm
• Auto focus

White Balance - Automatic

Presets

• 10 presets local camera
• 10 preset positions far-end camera

Tracking Technique

• Voice tracking or track to presets

Full-Duplex Digital Audio

• Instant adaptation echo cancellation
• Automatic gain control
• Automatic noise suppression

Audio Inputs/Outputs

• Polycom Mic Pod - RJ-9
• Line Level Input - RCA
• Main Audio Out, VCR In and Out - RCA L&R

Digital Microphone Pod

• Coverage 360�
• Microphones have 3 hypercardioid elements
• Omni-directional coverage
• Optional 2nd mic pod

Integrated Speakerphone (where approved)

• Third-party audio add-in

Diagnostics and Remote Management for the ViewStation MP

• Extensive diagnostics and software upgrades via PC, LAN or video call
• Integrated Web interface for direct management
• Supports Polycom Global Management System,™ Global Address Book and SNMP
• Supports Polycom OneDial™

Ethernet/Internet/Intranet Connectivity

• Supports-TCP/IP, DNS, WINS,SNMP, DHCP, ARP, WWW, ftp, Telnet
• 10 Mbps Ethernet Hub
• T.120 Interface with Microsoft NetMeeting® and ShowStation® IP

ViewStation MP Collaboration Solutions

• PC PresentsTM for Microsoft® PowerPoint®
• Polycom SNAP for high resolution graphics capture
• Visual Concert PC
• Visual Concert DC
• Visual Concert PC Basic

Network Interface

• ISDN protocols support NI-1, 5ESS, DMS100, ETSI

Auto-ISDN Setup

• Auto-SPID and switch detection

Transmission Speed

• 56-512 Kbps
• ISDN 1 x 56, 1 x 64, 2 x 56, 2 x 64
• Supports BONDING Mode 1
• S/T interface - NT-1 may be required

Electrical

• Auto-sense power supply
• Operating voltage/power
• 90-260 VAC, 47-63Hz/40 watts

ViewStation SP Dimensions and Weight

• Dimensions - 33cm x 20cm x 15cm
• Weight - 2.7kg (6lbs)

Languages Supported

• English, French, German, Spanish, Italian, Portuguese, Norwegian, Chinese and Japanese

Warranty

• Three year parts and labor
