LifeSize Express™

LifeSize Express™ is a new, affordable video conferencing endpoint designed for true to life high definition communications over IP networks. The LifeSize Express incorporates the latest video standards, such as H.263 and H.264, at 720p resolution and 30 frames per second. It is also H.239 capable for easy sharing of presentations, documents, and computer desktops with other conferencing systems. Coupled with LifeSize Networker, your system has have the added capability of integrating with ISDN networks. LifeSize Express brings people together across distance simply and successfully.

Features and Benefits:

• Low-cost, affordable HD solution
• High Definition Monitor Support
• HD Pan Tilt Zoom Cameras
• External Audio/Video Input/Output
• High Sentivity LifeSize Mic Pod

Product Specifications:

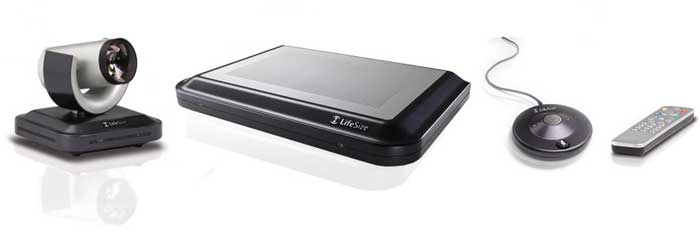

System Components

• LifeSize codec
• HD Pan-Tilt-Zoom camera
• LifeSize MicPod
• Wireless IR remote control

Communications

• 128Kbps - 1.5Mbps H.323 / SIP
• 1 x RJ-45 Network LAN
• 1 x 3.5 mm Mic In for LifeSize MicPoc
• 1 x RJ-45 for optional LifeSize Phone

Supports one HD Display

• HDMI Input

High Definition Camera

• LifeSize-designed High Definition pan/tilt/zoom camera
• Resolution: 1280 x 720, 30fps
• Wide-angle lens
• 4x optical zoom
• 70 degree field of view
• Auto-focus
• Automatic gain control
• 10 camera position presets
• 7.5 M / 25 ft. cable
• Optional 15 M /50 ft. cable

Video Specifications / Video Resolution

• Maximum Resolutions Widescreen 16:9 Modes
• 128 Kbps (400 x 244 pixels) Widescreen FCIF
• 384 Kbps (768 x 432 pixels) Cable TV
• 512Kbps (848 x 480 pixels) DVD Resolution
• 768 Kbps (1088 x 608 pixels) 2x DVD Resolution
• 1 Mbps or higher (1280 x 720pixels) High Definition

Video Standards

• H.263, H.263+, H.264 and H.239

Video Formats

• High Definition, 16x9 aspect ratio

Video Inputs (3 Inputs)

• 1x High Definition Pan Tilt Zoom Camera
• 1x HD Digital Video In (720p30)
• 1 x VGA In

Video Outputs (1 Output)

• 1 x HD Digital Video Out (720p30)

High Definition Active Microphone

• Single omni-directional microphone
• 100 Hz up to 16 kHzMute button
• Powered by codec directly through cable

Audio Features

• High definition audio
• Three-way audio add-on call capability
• GIPS NetEQ packet loss concealment
• Full duplex for natural conversations
• Echo cancellation for echo-free calls
• Automatic gain control
• Automatic noise reduction

Audio Standards

• G.711, G.722, G.722.1C (Polycom® Siren14™), G.729,MPEG-4 AAC-LC

Audio Inputs (2)

• 1 x 3.5 mm Line In (L+R)
• 1 x 3.5 mm Mic In

Audio Output (1)

• 1 x Line Out / Headset (L+R)

User Interface & Features

• Context sensitive user interface
• Wireless IR remote
• Graphical User Interface Call Manager
• Virtual Multiway support
• 13 localized languages supported
• Customizable background screen
• Selectable camera icons & live preview

Security

• Flash-based Web management tool
• Administrator and User-level passwords
• SNMP security alerts
• Ability to disable HTTP, SSH and Telnet services
• H.235 encryption support including strict compliance
• Kensington lockable

Intelligent Networking Features

• IPv4 and IPv6 support
• Auto H.323 dialing
• When used with LifeSize Networker: H.320 dialing
• Auto SPID detect
• Downspeeding

Directory and Address Book

• 1000 available local directory entries
• Save, Lock, Remove, Redial List features
• Missed call alerts
• Auto-Discovery directory
• LDAP (H.350) support
• Meetings Directory support

Management

• Web interface and Management tools
• SNMP

Optional

• LifeSize Phone works as stand alone conference phone and mic
• LifeSize Networker for ISDN connectivity

Codec Dimensions

• Weight: 1.29Kg (2.84 lbs)
• Width: 288mm (11.34")
• Depth: 187.5mm (7.38")
• Height: 41.3mm (1.63")
