LifeSize Room ™

LifeSize Room™ combines an immersive, high-definition video experience with a rich set of features to deliver a powerful, flexible and easy-to-use video communication solution. An ideal fit for large conference rooms, LifeSize Room allows you to establish video calls with multiple participants through the embedded high definition multipoint bridge. Display multiple participants simultaneously with 4-way continuous presence or watch the view change automatically among callers with 6-way voice-activated switching - all without external equipment, advanced scheduling, or a technician.

With the ability to support two monitors and two cameras, LifeSize Room delivers the ultimate in flexibility. Presentations, documents and multimedia can be shared with all participants, enabling anyone with dispersed colleagues to collaborate more effectively.

Features and Benefits:

• High Definition Quality
• High Definition Monitor Support
• High Quality Conferencing Phone
• Embedded 4 point Continuous Presenser Multipoint
• Embedded 4 point Continuous Presenser Multipoint
• Embedded Voice Activated Switching

Product Specifications:

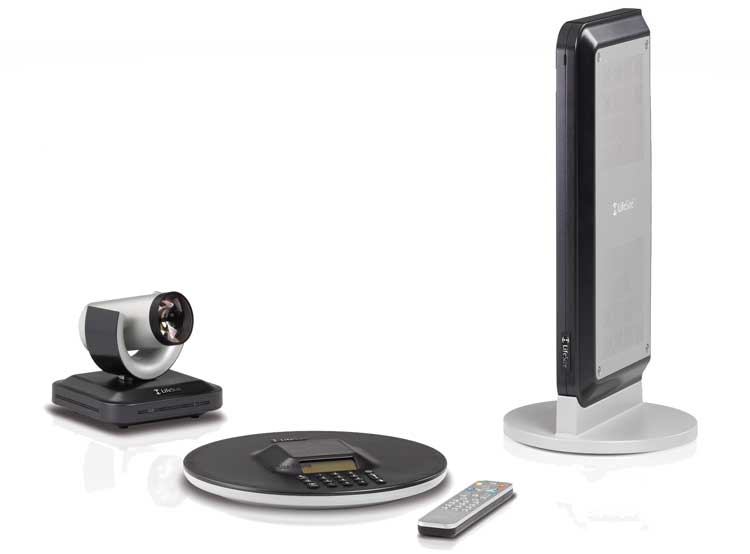

System Components

• LifeSize codec and stand
• LifeSize Phone with fully integrated speakerphone
• High Definition camera
• Wireless Infrared remote control

Communications

• 128Kbps – 5.0Mbps
• H.323, SIP
• 1 x RJ-45 Network LAN (10/100 Mbps)
• 1 x RJ-45 for LifeSize Networker (PoE Support)
• 1 x RJ-45 for LifeSize Phone
• 1 x RJ-11 for analog telephone line

Support for Multiple Displays

• Support for Single or Dual Monitor displays
• HD 720p component video VGA monitor

High Definition Camera

• Single or Dual camera support
• LifeSize HD pan/tilt/zoom camera
• Resolution: 1280 x 720, 30fps
• Wide-angle lens with 4x optical zoom and 70 degree field of view
• Auto-focus
• Automatic gain control
• 10 camera presets7.5 M / 25 ft. cable, Optional 15M / 50 ft. cable
• Support for Sony EVI-HD1 HD Camera (optional)

Video Specifications / Video Resolution

• Widescreen 16:9 Modes
• 128 Kbps (400 x 244 pixels) Widescreen FCIF
• 384 Kbps (768 x 432 pixels) Cable TV
• 512Kbps (848 x 480 pixels) DVD Resolution768 Kbps (1088 x 608 pixels)
• 2x DVD Resolution
• 1 Mbps or higher (1280 x 720pixels) High Definition
• Actual resolution depends upon capability of remote end and is impacted by the quality of the communications channel

Video Codecs and Standards

• H.263, H.263+, H.264 and H.239

Video Formats

• HD 16x9 aspect ratio

Video Inputs (7 Inputs total)

• 2 x High Definition PTZ Cameras
• 2 x S-Video
• 2 x Composite/RCA in
• 1 x VGA In (supports up to 1280x1024)

Video Outputs (4 Outputs total)

• 1 x Composite/RCA Out
• 1 x S-Video
• 2 x Component/VGA

Audio Features

• Highest Quality Audio
• Full duplex for natural conversations
• Echo cancellation
• Automatic noise reduction
• Automatic gain control
• Ability to integrates with analog telephone line

Audio Codecs

• G.711, G.722, G.722.1C (Polycom® Siren14™), G.729MPEG-4 AAC-LC

Audio Inputs (3 Inputs total)

• 1 x RCA line level input (L+R)
• 1 x RJ-45 for LifeSize Phone
• 1 x RCA line level in

Audio Outputs (3 Outputs total)

• 1 x Main audio output (L+C+R)
• 1 x RJ-45 for LifeSize Phone
• 1 x RCA line level output

User Interface & Features

• Wireless Infrared remote control
• Connect participants from integrated LifeSize Phone
• Call Manager Graphical User Interface
• 13 languages supported
• Customizable backgrounds
• Live preview

Security

• Flash-based Web management
• Passwords for Users and Administrators
• SNMP alerts
• Ability to disable SSH, Telnet and HTTP
• H.235 encryption support
• Kensington lockable

Intelligent Networking Features

• IPv4 and IPv6 supportAuto H.323 dialing
• When used with LifeSize Networker:
• Downspeed
• H.320 dialing
• SPID detection

Directory and Address Book

• 1000 available local directory entries
• Save, Lock, Remove Redial List features
• Missed call notification
• Auto-Discovery directory lookup (patent pending)
• LDAP (H.350) support
• Meetings Directory support
• Hierarchical address book

Embedded HD (MCU) Multipoint Control Unit

• 4-way HD CP multipoint conferencing for video/audio
• 6-way HD VAS multipoint conference for video/audio
• H.239 multisite support
• Integration with optional LifeSize Control management software
