Polycom Executive Collection - Specifications

The Polycom Executive Collection include integrated plasma displays, video conferencing system with options (iPower 9800 or ViewStation 4000), camera, audio sound system, microphone, system controls, furniture enclosures and integrated cabling

Executive Collection Models

• Single 50-inch floor system
• Dual 50-inch wall system

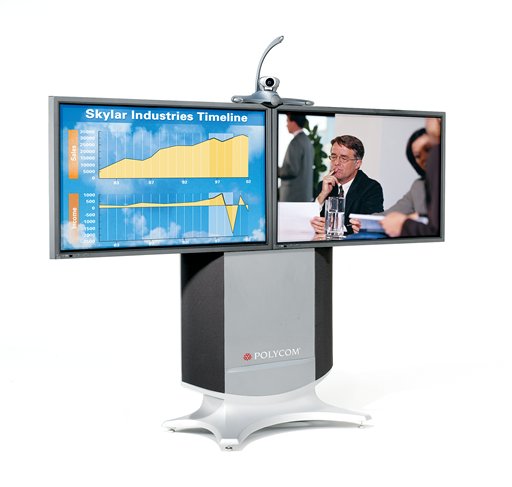

• Dual 50-inch floor system
• Dual 61-inch wall system

Furniture Enclosure

• Wall system furniture enclosure includes credenza which houses the codec and amplifier with space for 4U of additional equipment, as well as speakers integrated with wall mounted plasma displays (including brackets)
• Floor system furniture enclosure includes stand which houses the codec and audio sound system

Video Conferencing System

• Choice of Polycom's top of the line iPower 9800 or ViewStation 4000-based video conferencing systems including remote control, video conferencing camera, microphone, tabletop connectivity for laptops or PCs, internal multipoint capability, and more
• Highest quality audio capabilities including Integrated Dynamic Echo Cancellation (IDEC), Automatic Gain Control (AGC), Automatic Noise Suppression (ANS), as well as support for the widest range of industry audio algorithms, including 7 kHz with G.722, G.722.1 and 3.4 kHz with G.711, G.728
• Fully ITU-T H.320 and H.323 compliant
• Full standards support of video algorithms including H.261, H.263, H.263+, H.263++
• Versatile set of data collaboration options including T.120 with Microsoft NetMeeting
• Content video resolution up to XGA (1024x768) - end-to-end - for high quality PC sharing
• People+Content� features including Dual Images (view people and high-resolution content simultaneously) and synchronized content ("what you see, they see")
• Polycom Office features in mixed platform calls including People+Content and Conference On-Demand with Polycom PathNavigator� (endpoint initiated unscheduled multipoint using the MGC Bridges)
• Fully manageable from Polycom's Global Management System�
• Internal multipoint capability to join up to four video sites and one audio site

Integrated Audio Sound System

• Dual speakers: includes 3/4" silk fabric dome tweeter combined with two 3 1/2" composite midrange drivers for superb sound reproduction at frequency ranges of 100 Hz to 22 kHz
• High fidelity audio system delivers 270 watts, with a high efficiency amplifier, subwoofer and two (2) satellite speakers transforming this conferencing solution into a high-performance sound studio for large environments
• Subwoofer: 150 watts continuous at 100 Hz, one channel driven at less than .3% total harmonic distortion, with two (2) 6-inch drivers with bass response down to 35 Hz
• 270-watt (total power) multi-channel B.A.S.H. digital hybrid amplifier (BASH � is a patented High Efficiency Power Amplifier circuit topology resulting in a successful marriage of efficiency, distortion, bandwidth, EMI, and sound quality)

Polycom Executive Collection Plasma Displays

• High resolution (1366 x 768), high contrast, high brightness, 16:9 widescreen aspect ratio format
• Single or dual 50" (127 cm) diagonal plasma displays available with floor system
• Dual 50" (127 cm) or dual 61" (155 cm) plasma displays available with wall system

From Fiji to Australia to Europe, every global location is mission critical and every equipment and network installation is mission accomplished. - Dustin Gabbett, Field Engineer

iPower 9800 Configurations -

Chassis

• PC chassis based on Pentium III host processor running Windows 2000 Professional, including Ethernet 10/100 interface, DVD drive and two (2) USB ports

PowerMic�

• Smart microphone, which electronically locates the person speaking, anywhere within a full 360� radius (one included, up to eight total)

PowerCam� Plus Camera

• Silent, motorized pan-tilt-zoom camera, with Limelight automatic camera pointing including "dialog mode"

ImageShare� II

• Tabletop connectivity device for laptop/PC with video input up to XGA (1024x768) and audio input (3.5 mm)

WirelessTablet Option

• Bluetooth wireless tablet interface allowing easy pen-based access to conference controls and ability to annotate on content at the same time

Wireless Keyboard

• Infrared wireless keyboard with trackball for point-and-click functionality and dedicated video conferencing hot keys

Remote Control

• Infrared remote control including built-in mouse functionality

Audio, Video and Data Capabilities

• Data collaboration options including showing any application from the iPower desktop over video
• Superior audio quality
• 14 kHz with Siren14�
• Video using H.264* for highest quality video in low bandwidth networks
• Pro-Motion interlaced video (H.263 Annex W) at 336 Kbps and above

Multipoint calling over IP (H.323 video conferencing)

• Local site plus three (3) video sites at 768 Kbps each
• Simultaneous voice-add over ISDN/IP
• Voice-activated or continuous presence modes
• People+Content features: content up to XGA, synchronized content
• T.120 data collaboration
• H.261, H.263, H.263+
• G.722, G.723.1, G.711

Optional high-capacity multipoint with iPower 9800

• Local site plus eleven (11) video sites, same specifications as above

Integrated Streaming

• Supports up to 5 direct viewings (MS Media Player V7.0 or higher) or
• Supports external Microsoft Media Server for larger numbers of participants
• People+Content streaming gives the full experience of the meeting to participants in nonvideo enabled locations
• View conference with content from an LAN with standard Web browser

Optional Digital Conference Recording

• Allows users to save entire conferences for archiving and later retrieval and replay

Network Interface Options

• ISDN, Quad BRI S/T, up to 512 Kbps
• V.35/RS-449 with RS-366 dialing, up to 2 Mbps
• IP (LAN, DSL, cable modem), Ethernet 10/100, up to 4 Mbps

ViewStation 4000 Configurations -

PowerCam Camera

• Silent, motorized pan-tilt-zoom camera, designed especially for video conferencing

Audio, Video and Data Capabilities

• Content input options including PC Presents for Microsoft PowerPoint, Polycom SNAP for high resolution graphics capture and Visual Concert DC

Digital Tabletop Microphones

• Two (2) digital microphone pod with omni-directional coverage of 360� using 3 hyper-cardiod elements

Remote Control

• Handheld, ergonomic remote control

Visual Concert FX

• Tabletop device for audio and video input from a PC or Macintosh up to SXGA (1280x1024), video output (projector) up to XGA (1024x768), audio input (3.5 mm), and three (3) inputs for 10/100 Ethernet hub

Embedded MPPlus

• Supports mixed combinations for 5 sites (4 IP/ISDN + 1 POTS audio)
• Supports IP and POTS telephones
• Continuous presence or voice switched
• Dial in and dial out of existing calls
• Mode to automatically switch between presenter and continuous presence
• Mixed cascading up to 14 sites (10 IP/ISDN + 4 POTS audio)

Integrated Streaming

• Live video stream multicast to Apple QuickTime, Cisco IP/TV, etc. with controls via web interface

Security

• Full set of security features including secure password authentication, unique factory default passwords, dial-in meeting passwords, do not disturb meeting feature, menu screen selectable password protection
• Independently verified and tested for secure use in corporate and classified environments

Network interface Options

• PRI/T1 or PRI/E1, up to 2 Mbps
• V.35/RS-499 with RS-366 dialing up to 2 Mbps
• IP (LAN, DSL, cable modem), Ethernet 10/100, up to 2 Mbps
• ISDN, Quad BRI S/T, up to 512 Kbps

Dimensions - Executive Collection

Wall System (credenza)

• Width: 32"/ 81.28 cm
• Depth: 30" / 76.2 cm
• Height: 26.75" / 67.95 cm

Floor System (Base footprint)

• Width: 37.2" / 94.49 cm
• Depth: 23.6" / 59.94 cm

Floor System (Dual 50" mounted plasmas)

• Width: 95.3" / 242.1 cm
• Height: 63.8" / 162.1 cm

Wall System (Dual 61" mounted plasmas/speakers)

• Width: 134" / 340.4 cm
• Depth: 6.3" / 16 cm

Wall System (Dual 50" Mounted plasmas/speakers)

• Width: 112" / 284.5 cm
• Depth: 6.3" / 16 cm

Electrical

• Auto-sensing power supply 110/220V AC, 50/60 Hz
• 115 watts maximum for codec and main camera
• 530 watts maximum per 50" plasma display
• 828 watts maximum per 61" plasma display

Languages

• User interface, on-line help, and documentation available in English, French, Japanese, German, French, Spanish, Portuguese, Italian and Simplified Chinese

Executive Collection Warranty

• Software - 90 days telephone support
• Hardware -One year parts and labor (return to factory)

Please note that the Polycom Executive system capabilities vary depending on iPower 9800 or ViewStation 4000 selection, software package and network selection. Additional are specifications available.
